Portable Mini Charger

Lightweight and compact, easy to carry;
Integrated motherboard, efficient and practical;
Complies with various mainstream global standards: Chinese, European, and American standards.

Product overview

　　Mini but Powerful
　　

Product features
　　Solid design wallbox
　　　Meet IP65 & IK10 standard by lab test
　　Color Indicator light
　　　Showing real time charging status
　　Control botton
　　　Max output current adjustment
　　Industry leading Water protection
　　　Resistance of 15 minutes direct spray from a high pressure water jet in lab test
　　TPU cable
　　　4.5 meter cable with excellent durability and top cold resistance at -40℃
　　TUV approved connector
　　　Excellent water protection and easy hold ；Silver plated terminals to minimize wear and tear on EV charging socket

　　Designed for your most convenient
　　　· IK10 Solid design withstand a 2.5T car
　　　Mini size with no more than 2kg

Max 16A 1P stable and safe charging

Flexible charging/ power connector options

Color indicator light displays charging status in real time and dynamically

build in metering chip measures power consumption accurately

Max 5 levels current adjustment

-30℃-60℃ stable working

Self-diagnosis of faults, automatic repair

Compatible with all cars in type 2/1 connection.

Protecting the life of car battery with the most stable charging process.

Parameter

Size and packaging

Our case Product installation

Teison profile

Factory history

Fault handling

TABLE OF CONTENTS

IK

1

Charging cable

Charging Connector

Charging plug

Control button

Indicator light

Control box

IEC/EN 62752

IEC/EN 61000

IEC/EN 62196

10

2

portable charging

PCV 0 housing with 2.0~3.0mm thick exudes robustness and protects

inside components from external influences.

The housing is made from materials specially developed for

top heat dissipation and with flame retardant coating.

Completely meets all requirements of the TUV applicable standards.

AC + DC faults detection

Real-time monitoring for heat and all instabilities during charging process

Highest safety

4

Parameter

IEC/EN 61000-6-1:2019; EN 61000-6-3:2007+A1; IEC 61000-6-1:2016;

IEC 61000-6-3:2006+A1; CISPR 14-1:2016; IEC/EN 62752:2016+A1

Specification

Model TS-PEC-003

Electrical Properties

Voltage

Max Output Current

Frequency

Max Output Power

Residual current protection

230VAC ±10%

16A (6/8/10/13/16 Optional )

50 / 60Hz

3.5kw

30mA as default 6mA is optional

Structure Design

LED Indicator

Charging Outlet

Power incoming line

Total cable length

Housing Material

Front Panel

5 Indicators

TYPE1/2 4.5M charging cable

0.5M

＞5M

PC+GF 10%

PC

Warranty 1 year

Safety Standard

Security Protection

Multiple Protection

Over/Under voltage protection，Surge protection，

Over temperature protection，Over current protection，

Leakage Protection，Short circuit protection，EFT Protection

Environmental Performance

Working temperature

Working humidity

Protection Level (control box)

Altitude

Application Site

Cooling Method

-30℃~+50℃

5%~95%, No condensation

IP65

2000m

Indoor/Outdoor

Natural cooling

Product Size 180*81*45mm

Packing Details

Each one is with a certificate of conformity card. Five-layer corrugated

packaging is used to fit the charger measured 410mm(L)*350mm(W)*

80mm(H) for 1pc.

Outer package 1PC/CTN（425mm*365mm*95mm）or 7PCS/CTN(600mm*

435mm*410mm).

180mm

81mm

45mm

410mm

350mm

80mm

5

Product size and packaging

Product size：180*81*45mm

Product net weight：1.9kg

Product gross weight：2.2kg

The operation steps are as follows:

Step 1: Connect with the power, the control box starts to be energized, the

blue light is always on.Press the “Ampere button” to set charging current.

Step 2: Connect the vehicle and insert the plug into the vehicle socket. The

control panel will automatically detect the connection status of the vehicle.

After the connection is successful, the connection indicator (green) will be

turned on and kept constant.

Step 3: Start charging and establish communication with the vehicle.

Vehicles confirm the control box on the cable by detecting the duty ratio of

PWM signal Maximum power current, charge indicator (green) blinking.

Step 4: Monitoring the charging process. During the charging process, the

current, leakage current and temperature of the cable control box during

charging process are monitored. If a fault occurs, the cable control box cuts

off the power supply, stops charging, the indicator shows different faults

according to flash freguency.

Step 5: Charging is over. The control box on the cable cuts off the power

supply and stops charging. Disconnect the power plug from the outlet

(socket). Disconnect the plug from the vehicle inlet.

6

Pls kindly check the manual before using.

Product installation

This cable has precise internal structure. Any questions, please contact our

Customer Service Manager at the first time. Please do not take it apart

without any professional technical support.

If any physical problem caused by Teison, we provide one year warranty to

replace a new one.

If any abnormal, the LED blinks as below.

Electric leakage Red blinks once

Communucation Fault Red blinks twice

Over- temperature Red blinks thrice

Over- current Red blinks four times

Under- voltahe Red blinks five times

Over- voltage Red blinks six times

2S between

every group

Abnormal

7

Fault handling

8

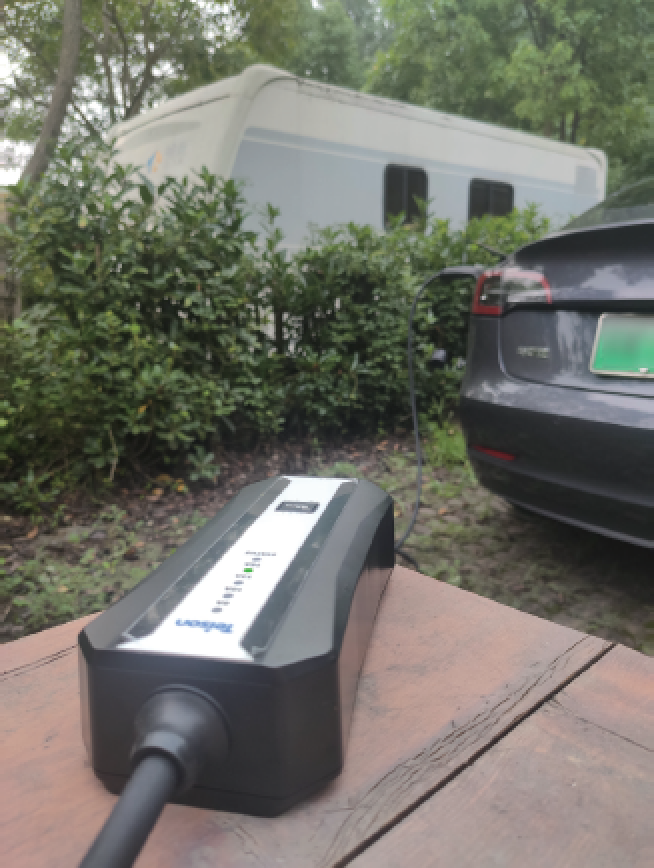

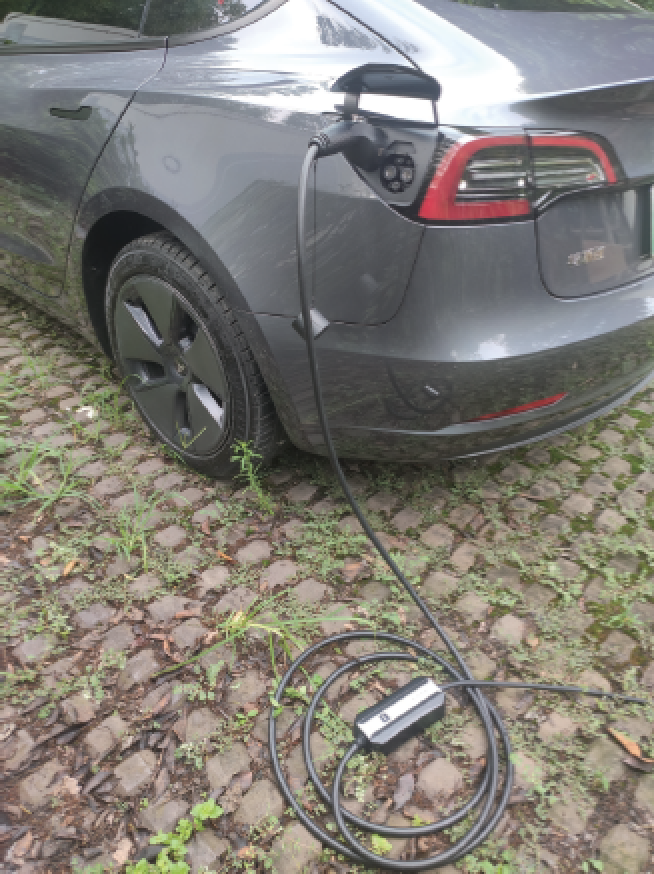

Our case
